Icon | 2023-2025 Ford F250 / F350 4WD Diesel 2.5 Inch Stage 1 Suspension System With Radius Arms
Icon | 2023-2025 Ford F250 / F350 4WD Diesel 2.5 Inch Stage 1 Suspension System With Radius Arms
6.7 Cummins Fuel System - 2019+

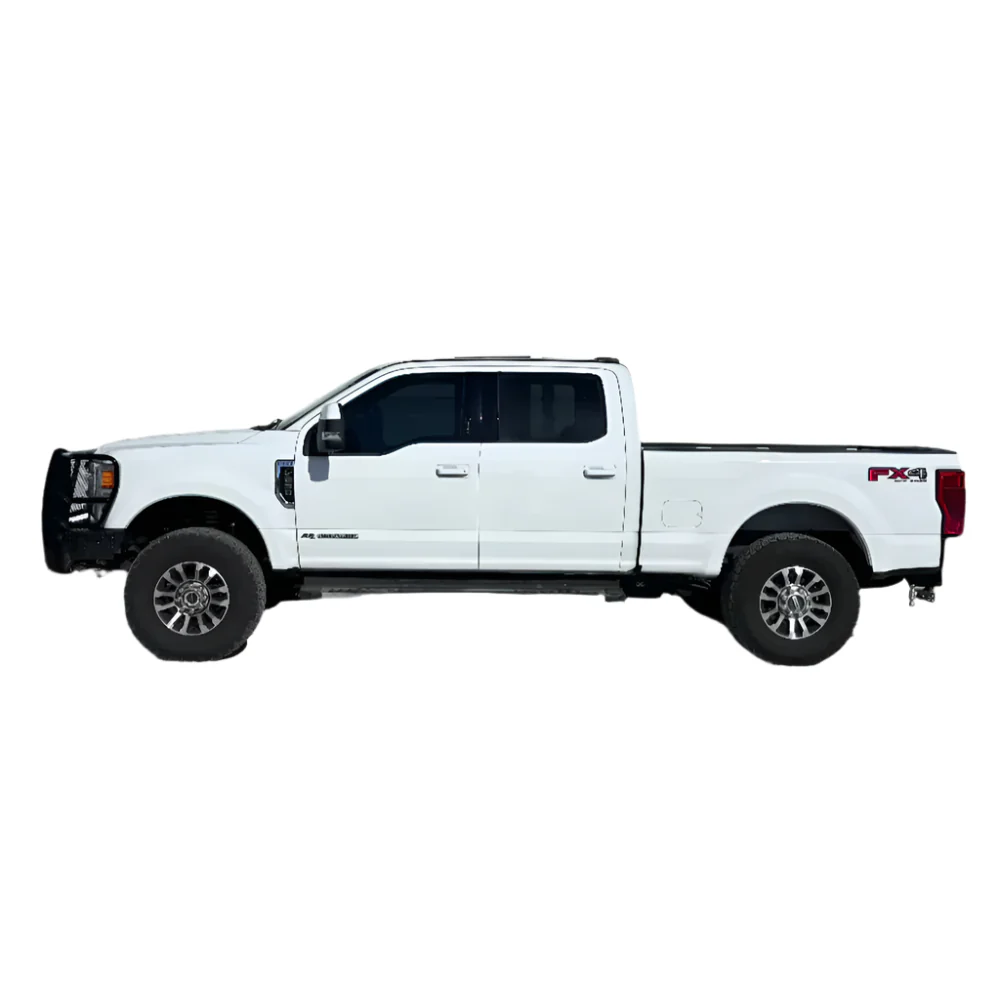

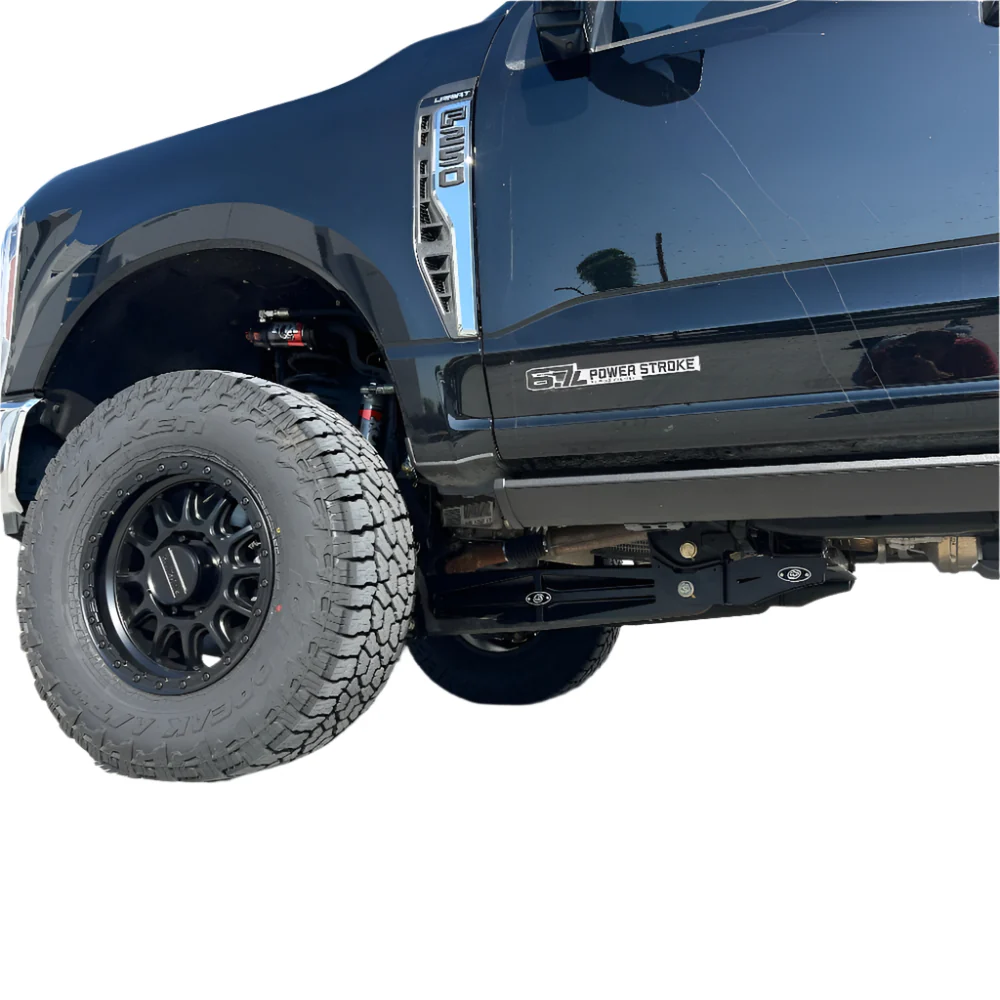

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 1 system is perfect for on-road and light duty off-road use including towing, job site duty and general off-road adventure. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, fabricated radius arms, and ICON 2.0 Aluminum Series front and rear internal reservoir shocks.

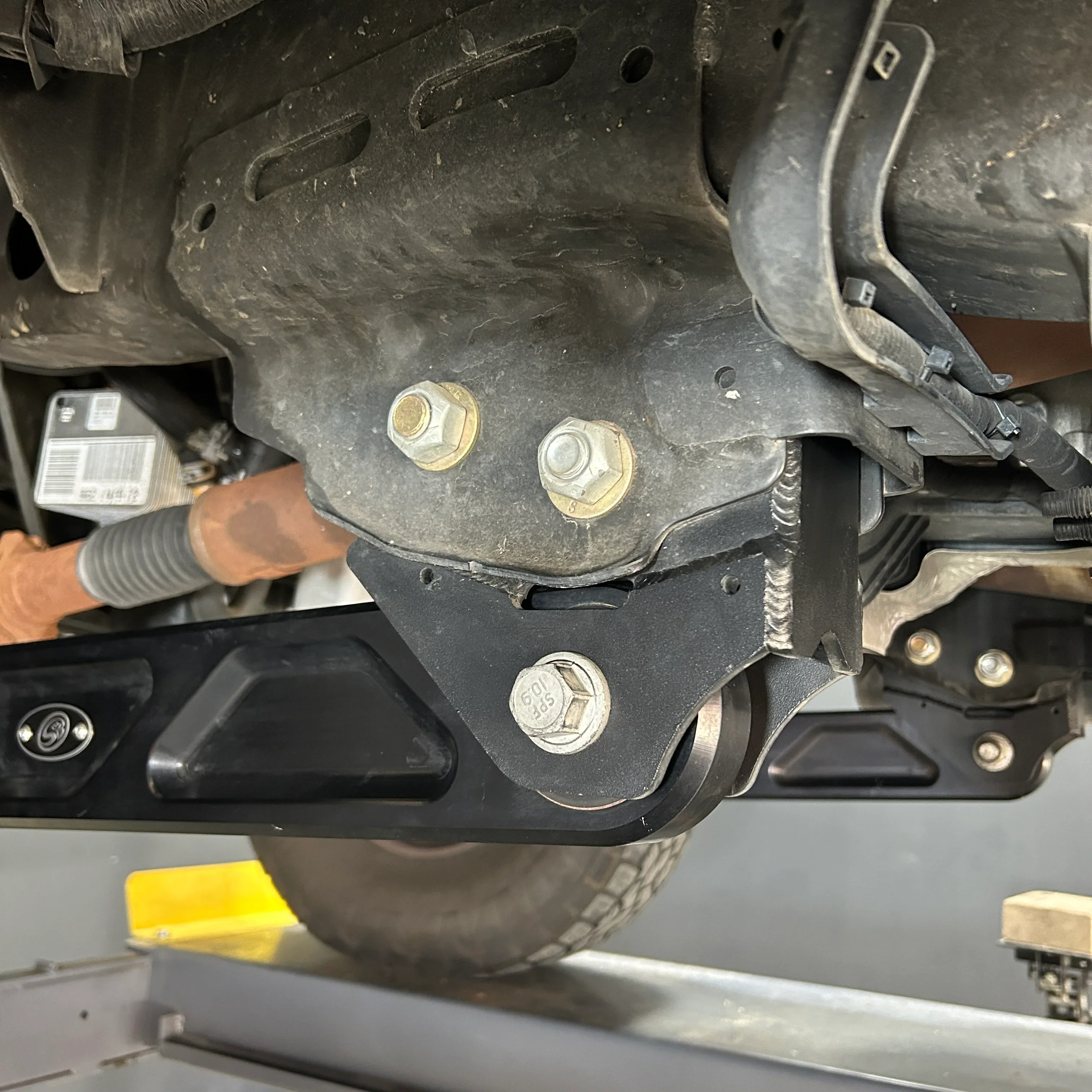

This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #3: NOT compatible with F-350 Cab & Chassis models
- APPLICATION NOTE #6: Springs are rated for diesel engines only
- APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional strength
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
- TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
